Specification

Accessories (Included)
Wok Ring: Yes
Brass Burner Caps: Yes
Black Burner Caps: Yes

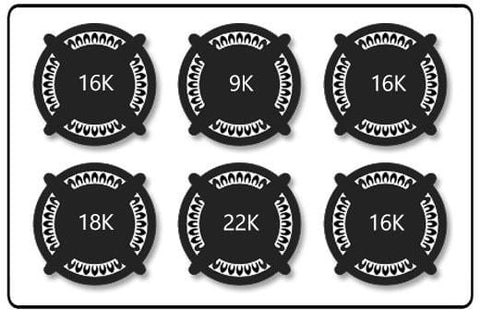

Burner Performance

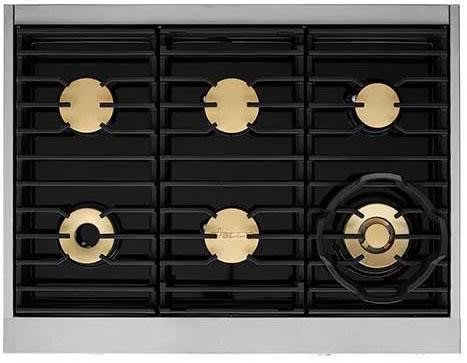

Total Number of Cooktop Burners: 6 (Brass)
Left Front (BTU): 18,000 Dual Simmer
Left Rear (BTU): 16,000 Stack Dual Simmer
Right Front (BTU): 16,000 Stack Dual Simmer
Right Rear (BTU): 16,000 Stack Dual Simmer
Center Front (BTU): 22,000 Dual Simmer
Center Rear (BTU): 9,000 Stack Dual Simmer
Sealed Burners: Yes

Control Features
LED Knob Backlighting: Yes
LED Ambient Lighting: Yes
LED Control Button: Yes
WiFi Connect LED: Yes
WiFi Connect Button: Yes
Bluetooth Connect LED: Yes
Bluetooth Connect Button: Yes

Additional Features
Re-Ignition: Yes
Oil Pan: Yes

Installation
Gas Type: Natural Gas/Liquid Propane
High Altitude Available: Yes
Power Cord: Yes

Technical Details
Circuit Breaker (A): 15
Volts (V): 120
Frequency (Hz): 60
Energy Source: Gas

Dimensions & Weight
Height: 8"
Width: 36"
Depth: 24"
Cutout Width: 36"
Cutout Height: 7 3/4"
Cutout Depth: 24"
Shipping Weight: 70 lbs

Warranty
Limited, Parts & Labor: 2 Years

---

Feature

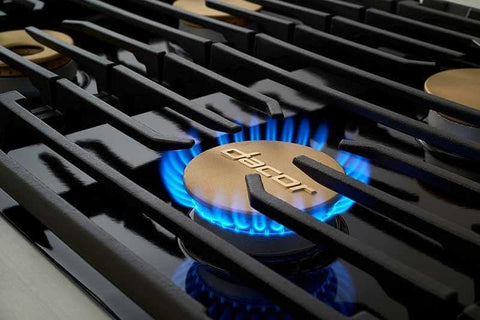

Authentic Materials
Full brass burners with brass caps ensure increased durability and strength, that resists warping at high temperatures and expands the product lifespan.
Brass valves and components further improve longevity and endurance.

Continuous Grates
Easily slide pots and pans across the cooking surface with continuous grates.

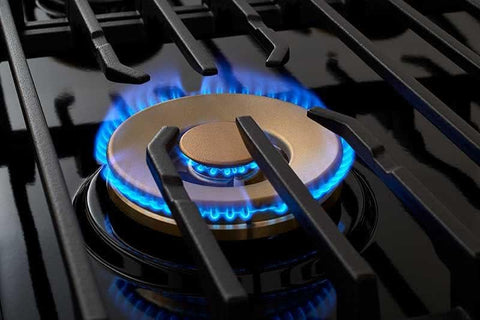

SimmerSear Burners
Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all Brass, Dual Valve, Dual Ring Burner.

Illumina Knobs
Warm, sophisticated and welcoming. The glowing Illumina knobs entice participation, inspire the imagination and accentuates the beauty of the product.

Perma-Flame
Automatically reignites burners if they are accidentally extinguished.

Auto Connected Hood
Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary, with the use of a temperature sensor.

Black and Brass Burner Caps
Comes with two finish options for a customized look.

SmartThings Integration
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever-growing ecosystem of smart connectivity.
Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.

Artisan Craftsmanship
3 piece, pressed, forged and knurled aluminum knobs with hand-painted finishing provide the weight and heft for smooth and sophisticated operation.

Bespoken Production
Graphite stainless steel features Dacor exclusive, Diamond-Like Carbon coating (DLC), that provide exceptional scratch, heat and stain resistance.
A process used in the luxury watchmaking industry requires up to 24 hours of labor to effectively produce one component.

---
