Specification

Overview

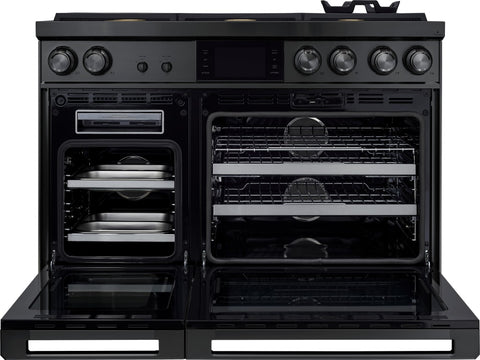

Oven Capacity (Cubic Feet): 4.8 (Large Oven) / 1.8 (Small Oven)
Cooking Modes: Bake - Broil - Convection Bake - Convection Roast - Convection Broil - Four Part Pure Convection - Pure Convection Sear - Steam Assist
Cooking Modes Small Cavity: Bake - Broil - Convection Bake - Convection Roast - Convection Broil - Four-Part Pure Convection - Real Steam - Steam Bake - Steam Roast
Bake Element: 3,000W - 8 Pass (LG)/ 1,000W (SM)
Broil Element: 4,400W - 10 Pass (LG)/ 2,400W (SM)
Convection Element: 1,300W EA. (LG)(2,600W TOTAL) / 2,000W (SM)
Steam Heater: 2,000W (SM)

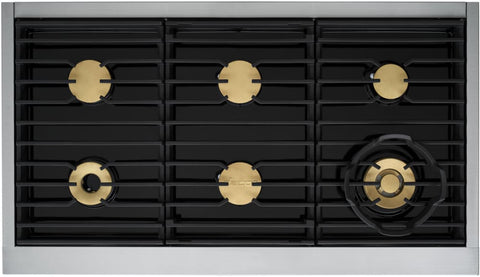

Total Number Of Cooktop Burners: 6
Right Front (BTU): 22,000 Dual
Right Rear (BTU): 9,000 Stack Dual
Center Front (BTU): 16,000 Stack Dual
Center Rear (BTU): 16,000 Stack Dual
Left Front (BTU): 18,000 Dual
Left Rear (BTU): 16,000 Stack Dual
Sealed Burners: Yes
Perma-Flame™ (Auto Re-Ignition): Yes
Infocenter™ Display: Yes
Number Of Knobs: 6 + 2 Lamp Knobs
Control Method: 7" Pop-Up Lcd
Wi-Fi: Yes
Bluetooth (Hood Connection): Yes
Illulmina™ Burner Knobs: Yes / White
Highlighting Color: White
Ambientlighting: Yes (Dimming)
Clock: Yes
Delay Start: Yes
Kitchen Timer: Yes
Time Of Day (12 Hr/24 Hr): Yes
Temperature (F / C): Yes
Child Lock: Yes
Sound On/Off: Yes
Manual Lighting On/Off: Yes
Cleaning Type: Self Clean (Primary)/Greenclean™ (Both Ovens)
Type Of Grate: Continuous Cast Iron
Cavity: Black Enamel Coating
Rack Positions: 6(LG) / 4(SM)
Convection Type: DUAL(LG) / SINGLE SM)
Lighting: Brightvue™ - Led + Halogen
Keep Warm: Yes(Both)
Low Proof: Yes(LG) - Steam(SM)
Proof: Yes(LG) - Steam(SM)
Stone Mode: Yes(LG)
Dehydrate: Yes(LG)
Gourmet Cook: Yes(LG)
Sabbath: Yes
Fine Steam: Yes(SM)
Guided Steam: Yes(SM)
Recovery Heat (Auto Reheat): Yes(SM)
Temperature Probe: Yes(Both) (Optional Mode)
Instantheat (No Preheat): Yes(LG) with Convection Roast/Convection Bake (Optional Mode)
Steam Proof: Yes(SM)
Steam Type: Real Steam
Water Tank Size: 1.5L
Water Tank Location: Small Cavity (Top Front)
Water Tank Material: Plastic
Water Tank Type: Manual

Dimensions and Weight
Height: 36 1/8"
Width: 47 7/8"
Depth: 27 1/2"
Cutout Width: 48"
Cutout Depth: 24"

Electrical Requirements
Circuit Breaker (A): 50
Volts (V): 240 / 208
Frequency (Hz): 60
Energy Source: Gas And Electric
Gas Type: Liquid Propane

Accessories (Included)
Gliderack™: 2 (LG)
Standard Rack: 1 (Lg) / 1 (SM)
Temperature Probe: 1 Ea (Both)
Wok Ring: 1
Convection Filter: 2 (Lg) / 1 (SM)
Steam Tray: 2 (SM)
Half Steam Tray: 2 (SM)
Brass/Black Burner Caps: Yes

Warranty
Limited, Parts and Labor: 2 Years

---

Feature

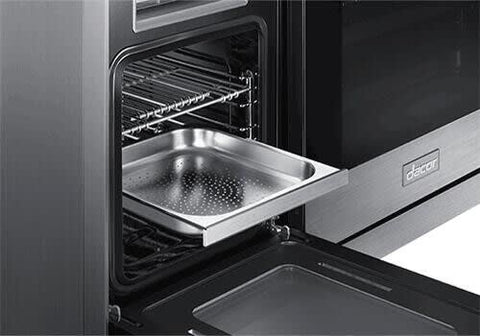

RealSteam Oven
For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust. Healthier, faster cooking with the power of pure steam.

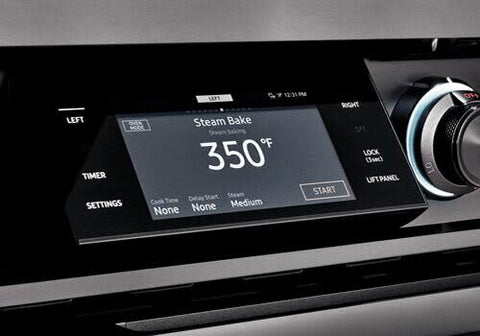

Wi-Fi-Enabled 7" LCD Control Panel
Automatically tilting, 7" smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.

Dual Four-Part Pure Convection
Heat, air, baffle, and filter to precisely distribute heat for superior cooking results.

Superior Steam Generation
Utilizing an external steam generator, quickly and effectively deliver the right amount of steam at the right time for that perfect culinary result.

Powerful Broiling
Even browning and powerful searing with a 10 Pass, 4400W broiler.

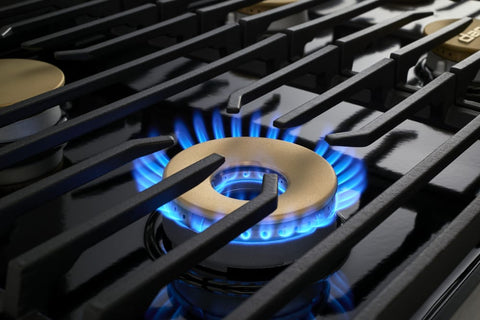

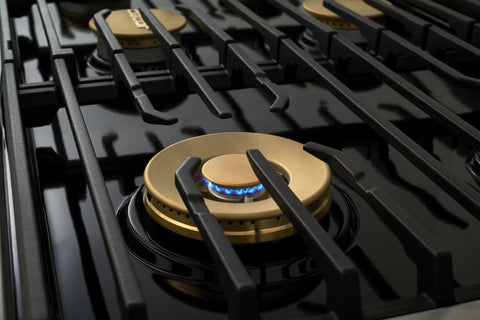

SimmerSear Burners
Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.

Auto Connected Hood
Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and increases the speed as necessary, with the use of a temperature sensor.

Perma-Flame
Automatically reignites burners if they are accidentally extinguished.

Chef Mode
Receive expert cooking advice straight from the 7" screen, guiding the user on the optimum rack setting, temperatures and timing.

SmartThings Integration
Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.

GreenClean
A faster, safer, better way to clean. Cleans with the versatile power of built-in steam capabilities, rather than extreme heat or harsh chemicals.

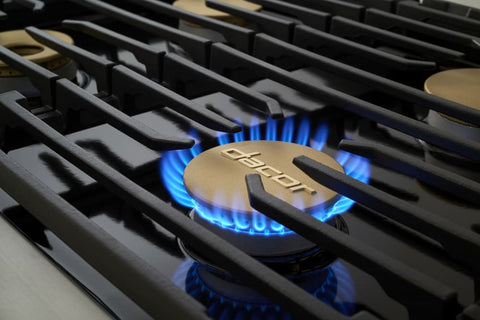

Black and Brass Burner Caps
Comes with two finish options for a customized look.

Ultra Wide Continuous Grates
Use multiple stock pots at a time and easily slide pots and pans across spacious cooking surface of 15" wide grates.

Other Features
LED and Halogen Lights
Glideracks
Softshut Hinges
Illumina Knobs

---
